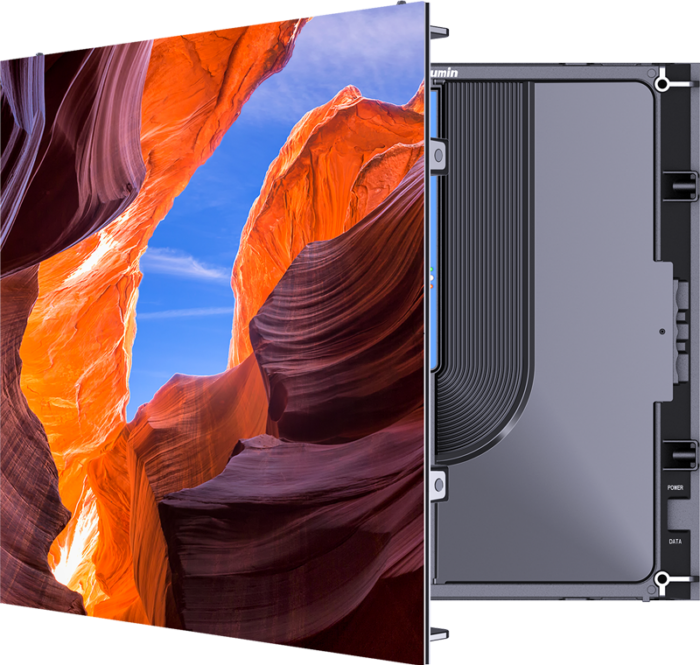

UslimII
Commercial Space Visualization Reinvented. Available in 500mm x 250mm, 500mm x 500mm, 750mm x 250mm, and 500mm x 1000mm.
Intelligent Operation & Maintenance Control
UslimII uses the Ucare System which provides intelligent operation and maintenance.
Ucare takes the full-color LED display as the “core” and uses an online connection to conduct daily tests for the LED panels. This will not only help your orders, it will also enhance the experience of using UslimII.
Various Creative Shapes
UslimII is available in three distinct sizes, four
size options overall:
- 1000mm x 500mm
- 500mm x 500mm
- 500mm x 250mm
- 750mm x 250mm
An ultra slim and light design makes UslimII 10.4mm thinner and 2.0kg lighter than average panels. This design means there’s no need for additional load-bearing structure, effectively reducing installation costs.
The 500mm x 250mm and 750mm x 250mm cabinets are integrated horizontally and vertically to supplement the height and width of the 250mm size.
Dual Maintenance
Front Maintenance: UslimII’s modules support magnetic front maintenance. Modules, receiving cards, and cables can be maintained from the front helping to reduce labor and steel structure costs.
Rear Maintenance: After opening the back cover, UslimII’s modules, receiving cards, and cables can be maintained from the rear.
UslimII Flex (UHF)
A flexible display and creative solution.
UHF can be customized to create attractive and unique irregular shapes, such as circles, columns, waves and other interesting configurations. UHF can be naturally integrated with original shapes and designs of buildings.
With a modern look, UHF increases the popularity of the location and advertisement efficiency.

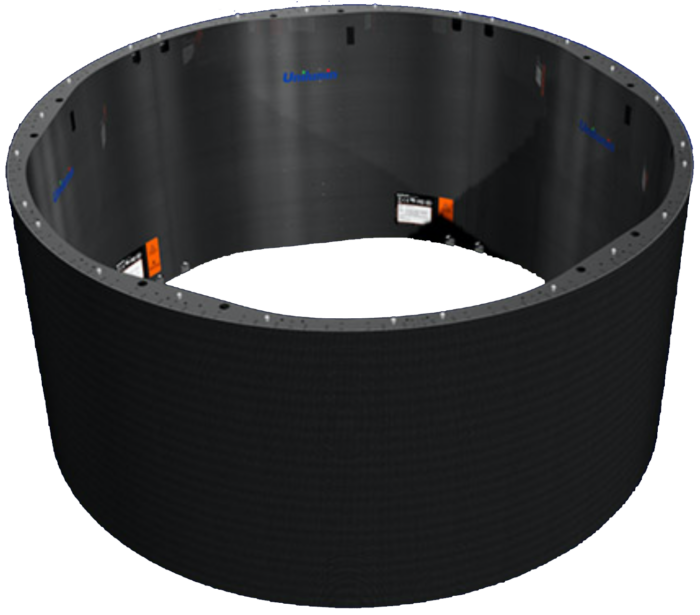

Ultra Flexible
UHF is able to create a circle with a diameter of 1.5m minimum. Owing to exceptional flexibility and high density, UHF offers a wide range of design possibilities.
Flexible cabinet size, cabinet size can be customized according to project demands.

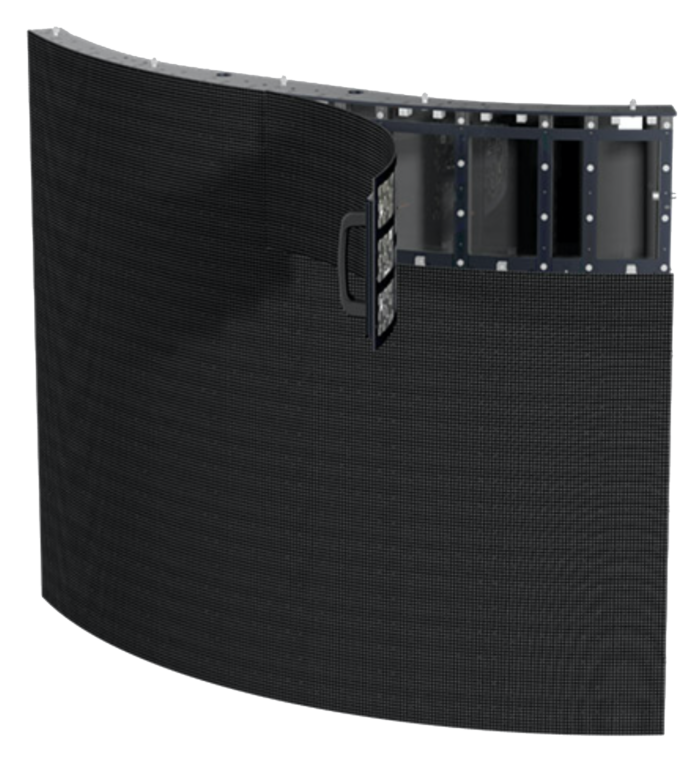

Sustainable Reliability
Metal Bottom Case: Metal bottom case limits the internal and external curve range, protects the module from excessive bending, and offers a better heat dissipation effect. It ensures that stress is evenly distributed to all parts of modules when curved and plays a critical role in the extreme flatness of your video wall.
PCB with FR-4 Technology: UHF applied FR-4 technology on its PCB, which is trusted as a highly reliable and secure technology in AV industry.
Customized COS Technology Protection: COS technology protects LEDs from collision, dust and water

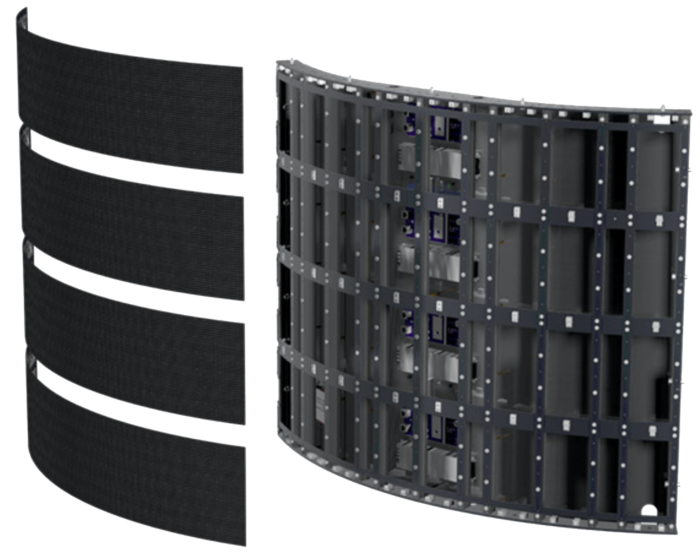

Streamline Operation Efficiency
- 4-in-1 bar module increases the speed of installation and curving precision.
- With each panel size 55’’ (customizable), it is natural to create native Full HD screens, at the same time ensures high screen flatness.
- Magnetic tool for front module maintenance
